Sandblast Cabins – Special Units
Here you find an extract of our special units.
- Custom tailored constructions
- Separate dust extraction device according to the requirements with downstream HEPA filter up to 0.005 mg/m³

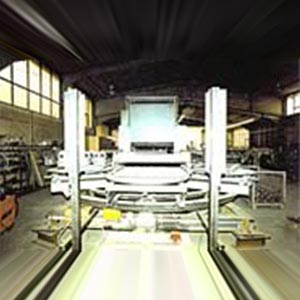

Blasting unit for hydrants
- Unit for interior blasting of pipes with feeding roundabout
- 6 feeding trolleys for automatic processing
- 2 oscillating lances with spray around sandblast nozzles
- Oscillation chariot can be positioned for several blasting passages
- Loading and unloading while sandblasting

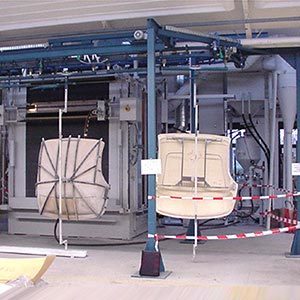

Roundabout blasting unit
- Suspension unit with automatic pressure blasting chamber and automatic cleaning chamber
- Suspension conveyor brings the fixing device with the work piece into the blasting chamber where it can be roughened from all sides by multiple axle systems
- In the cleaning chamber the work piece is cleaned with a brush and ionised air according to the outlines
- Then the workpiece comes out and can be put away
- After workpiece recognition, the system adjusts to the workpieces

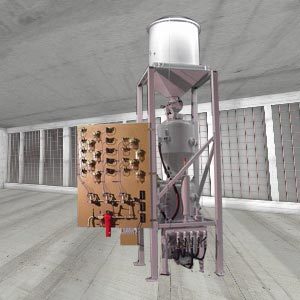

Two chamber sandblast unit with blasting material recovery and recycling
- Can be retrofitted for systems that need to be chained or in operation without interruption
- Complies with the highest quality standards
- Pressure blasting unit can be upgraded with several abrasive mixing valves for several nozzles

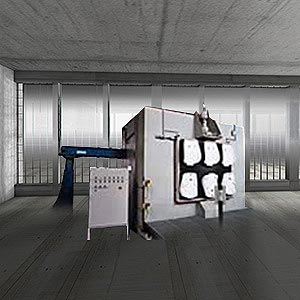

Robot sandblast unit (1)
- Designed as revolving wall system
- Drive over outlines to reach the requested roughness
- No impairment of the remaining surface
- Feeding during the ongoing production process possible by turning wall
- Easy change of parts to be treated

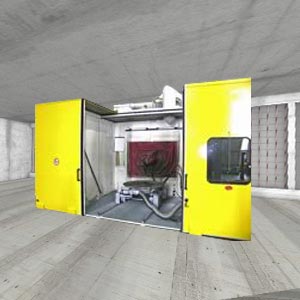

Robot sandblast unit (2)
- Sandblast room with movable front and movable roof
- Robot handling 6 axles with exact drive over the outlines of the geometry
- Additonal second axle by turn table with moving option
(6 + 2 = 8 principle)

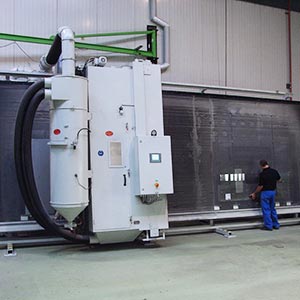

Blasting unit for standing components
- Blasting machine for standing components with mask tracing program
- with magnetic holder for reusable blasting stencils
- moving blasting unit without contact with the component

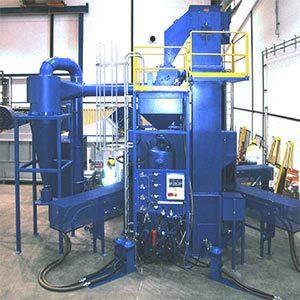

Blasting unit for hollow bodies
- Blasting machine for internal blasting of hot-formed hollow bodies
- with three movable inner blasting lances with all-round nozzles
- 2 m traversing distance for different types
- completely linked in the process with automated handling of workpieces by robot

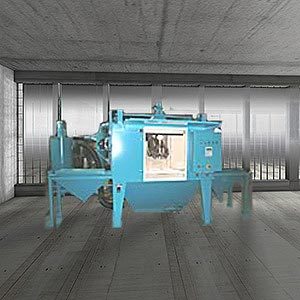

Shuttle table sandblast unit
- Special blasting unit for optimized sandblast with movable table and nozzle oscillation
- Available in different executions according to the requirements of the customer
- Advantage of the optimized sandblast: A 360°-treatment at 5 sides of the work piece is possible in one stroke

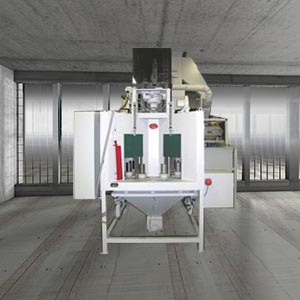

TTS
- Turn table satellite blasting unit with step turn table and mounted satellites
- Standard version with 3 – 12 satellites
- For the treatment of parts from all sides
- Also appropriate for parts which are not axially symmetric

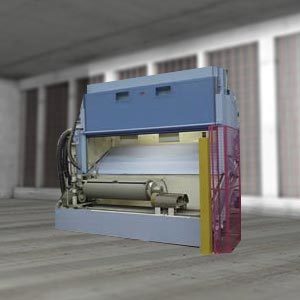

Sandblast unit for the treatment of axles
- Feeding station to be loaded completely free from top. Roof and front can be completely moved away
- Adjustable loading chariot
- Turning drive mounted outside
- Oscillation with several axles

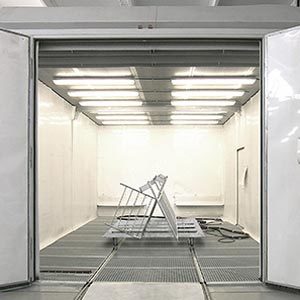

Blasting chamber
- Dimensions according to the request of the customer
- Blasting material recovery and recycling
- Lamella-tpye conveyor with push rod
- Sandblast booth available with roller track and turn table
- Blasting chamber with roller track and turn table
- Also available in other executions
